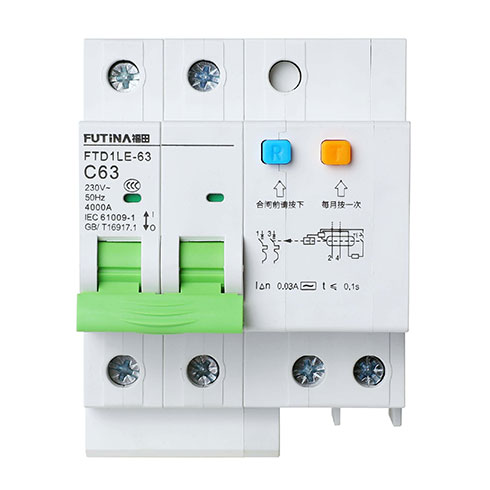

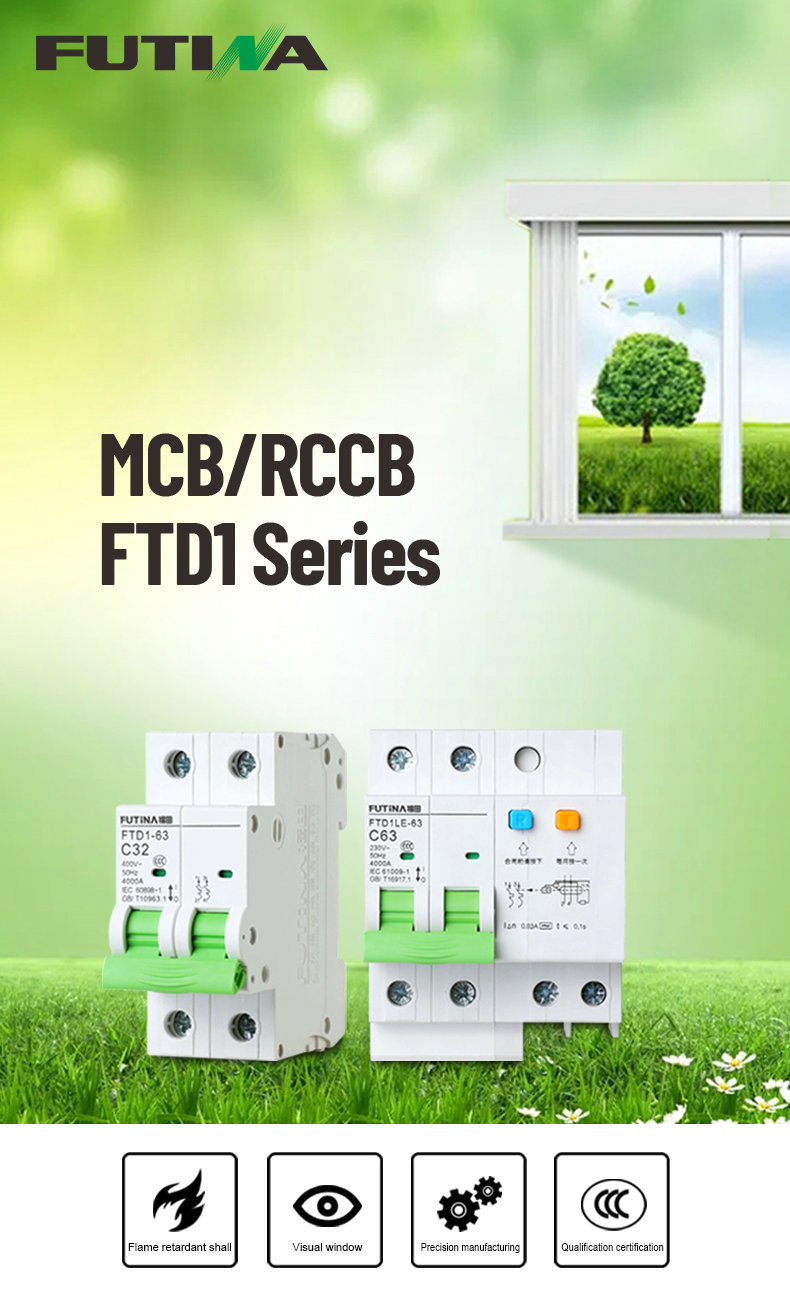

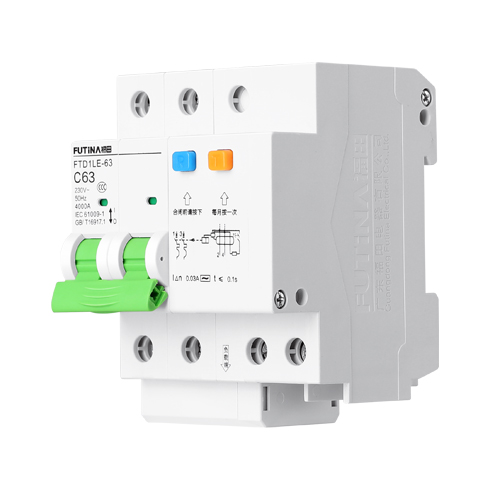

Futina 2 Pole 63 Amp RCCB Residual Current Circuit Breaker FTD1
Futina FTD1 residual current circuit breaker series earth leakage circuit breaker is mainly suitable for AC 50Hz/60Hz, rated voltage of 230V/400V and below, rated current up to 63A, with protection functions such as leakage electric shock, overload and short circuit.
Specification of 2 Pole 63 Amp RCCB Residual Current Circuit Breaker FTD1
| Product name | 2 Pole 63 amp RCCB residual current circuit breaker FTD1 |
| Rate current | 40amp |
| Model Number | FTD1-RCCB-2P63A |
| Brand | FUTINA & OEM & ODM |
| Standard | IEC60898 |
| Rated Voltage | 230/400 |

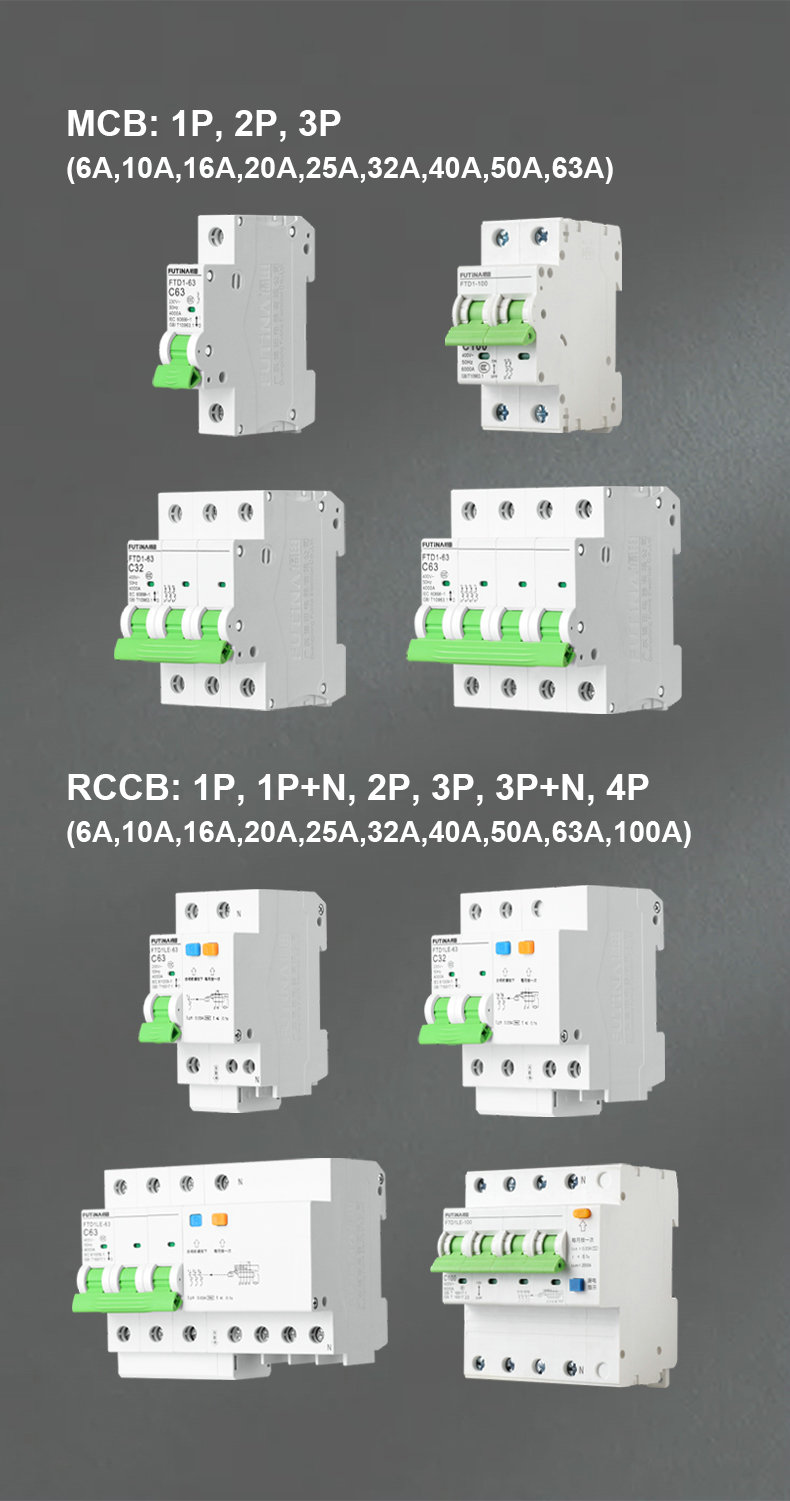

| Rated Current | 6, 10, 16, 20, 25, 32, 40, 50, 63 |
| Poles | 1-4 poles |
| Rated overload breaking capacity | 4500-6000 A |
| Frequency | 50/60HZ |
| Protection class | IP20 |
| Rated impulse withstand voltage | 4000V |
| Rated insulation voltage | Ui:500V |
| Ambient temperature (with daily average ≤35°C) |  |
| Storage temperature | |
| Housing material | PA66 fire proof |

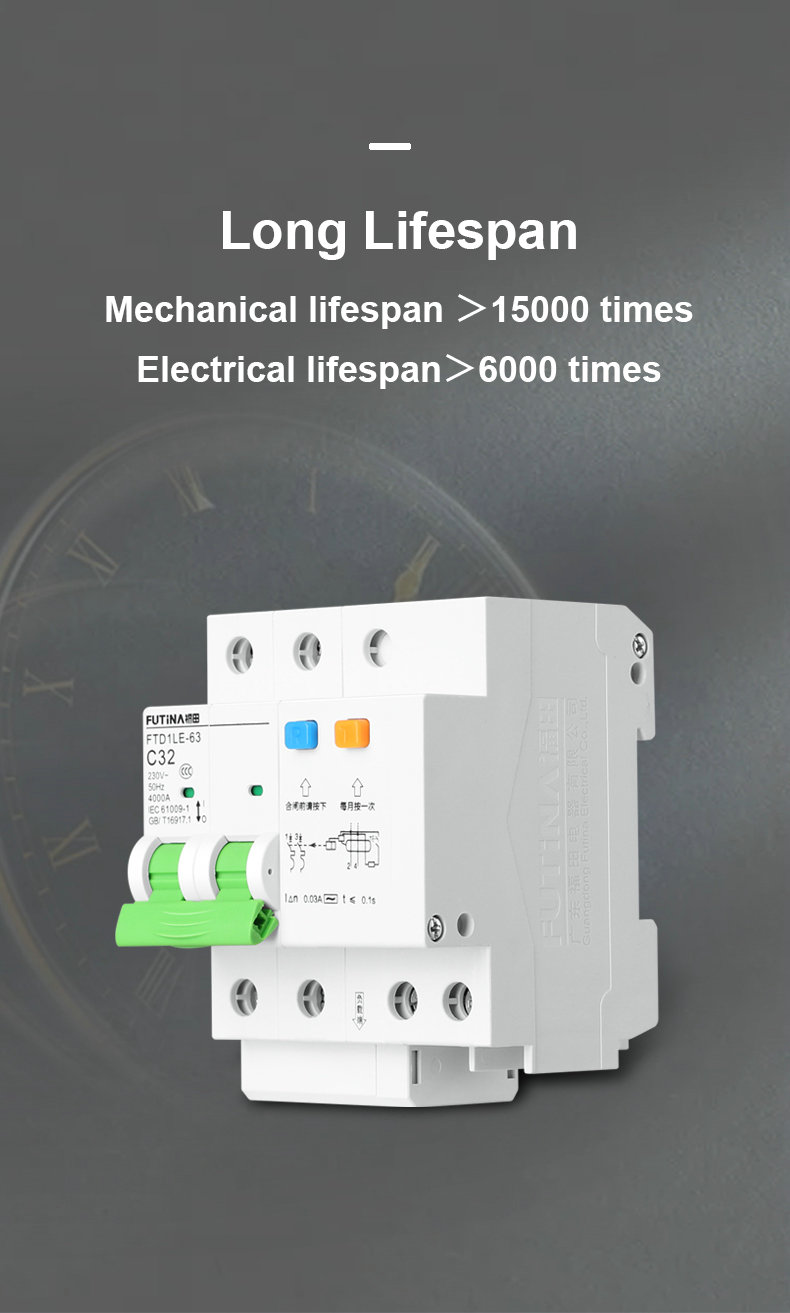

| Mechanical operation | 20000 times |
| Electrical operation | 6000 times |
| Warranty | 2 years |
| Port | Leliu, Shunde, China |
| OEM,ODM | We accept OEM, ODM, logo customize |
| MOQ | 1000PCS |
| Lead time | 45 days |
Highlight Of 2 pole 63 amp RCCB Residual Current Circuit breaker FTD1
-
Switching and isolation function.
Provides protection against earth fault/leakage current and function of isolation.
-

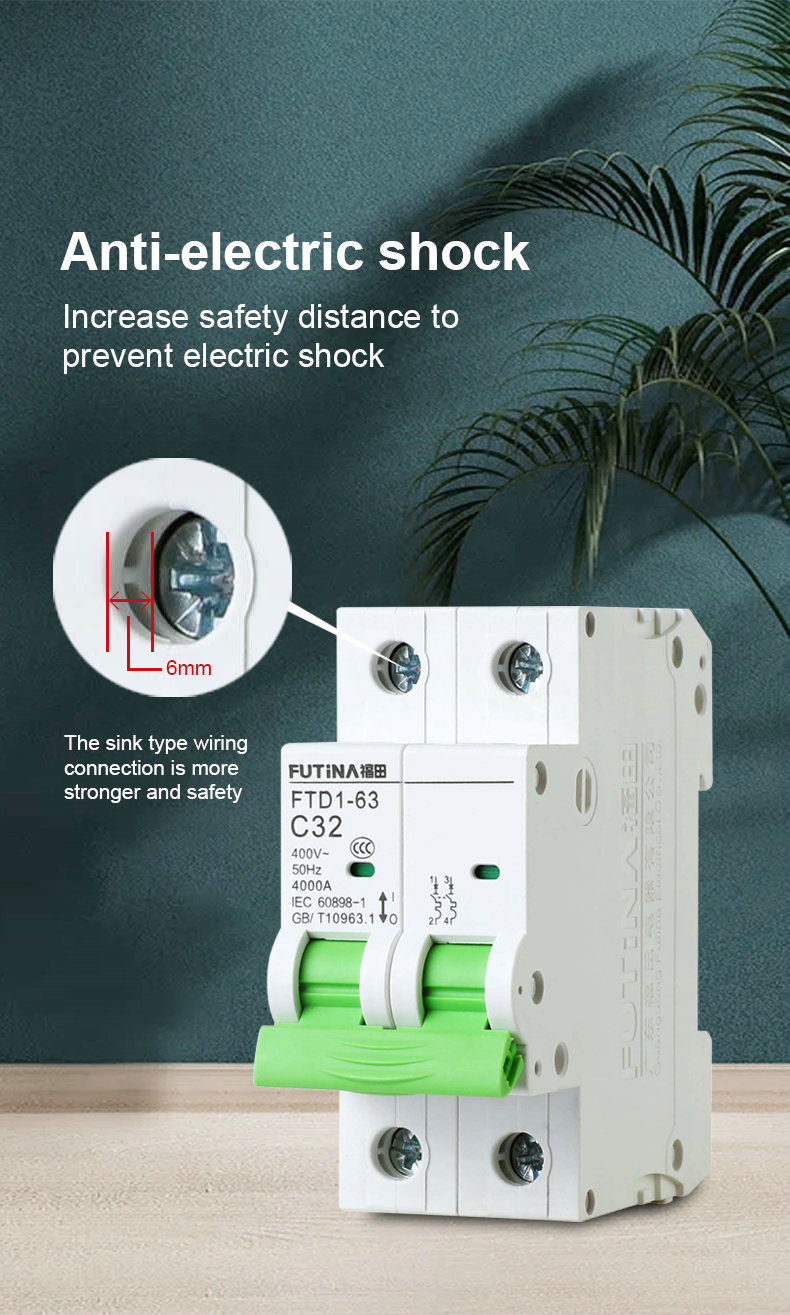

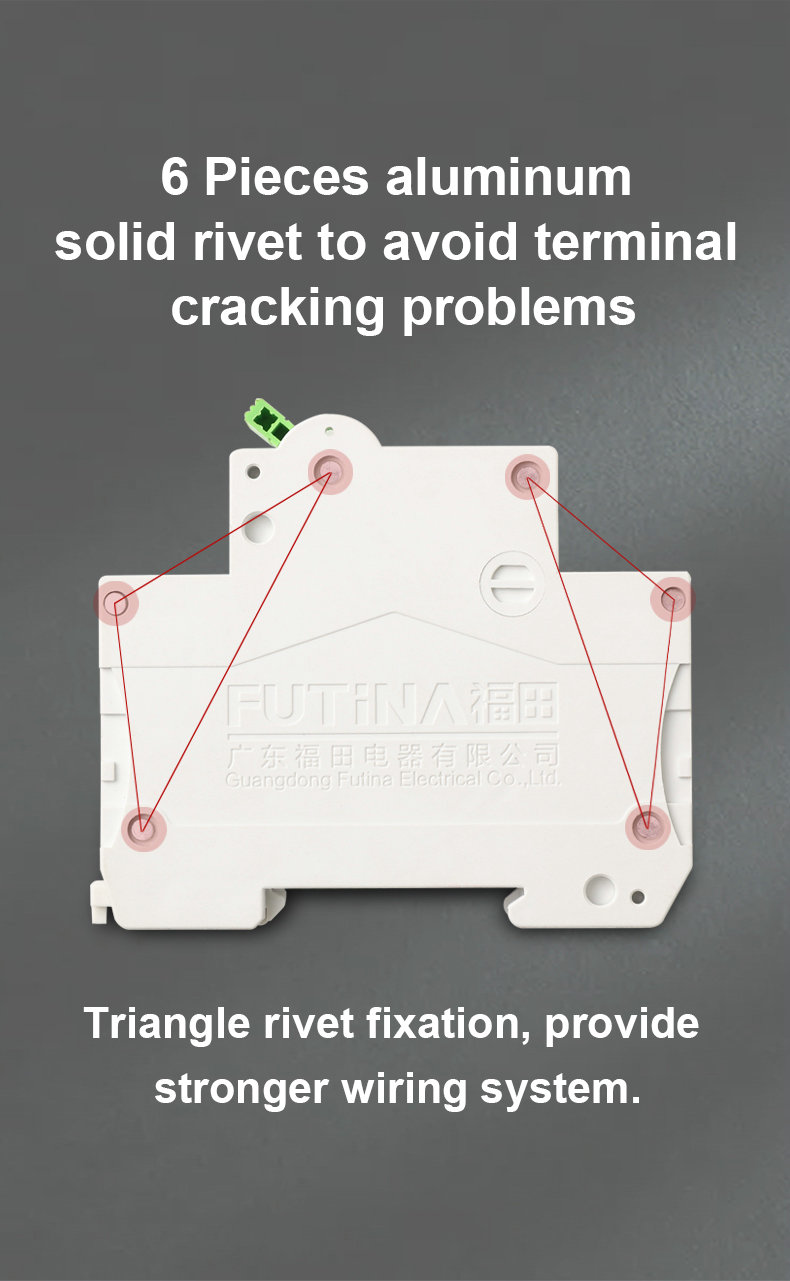

High quality big terminal
Excellent interface terminal can effectively prevent rupture and prevent leakage.
-

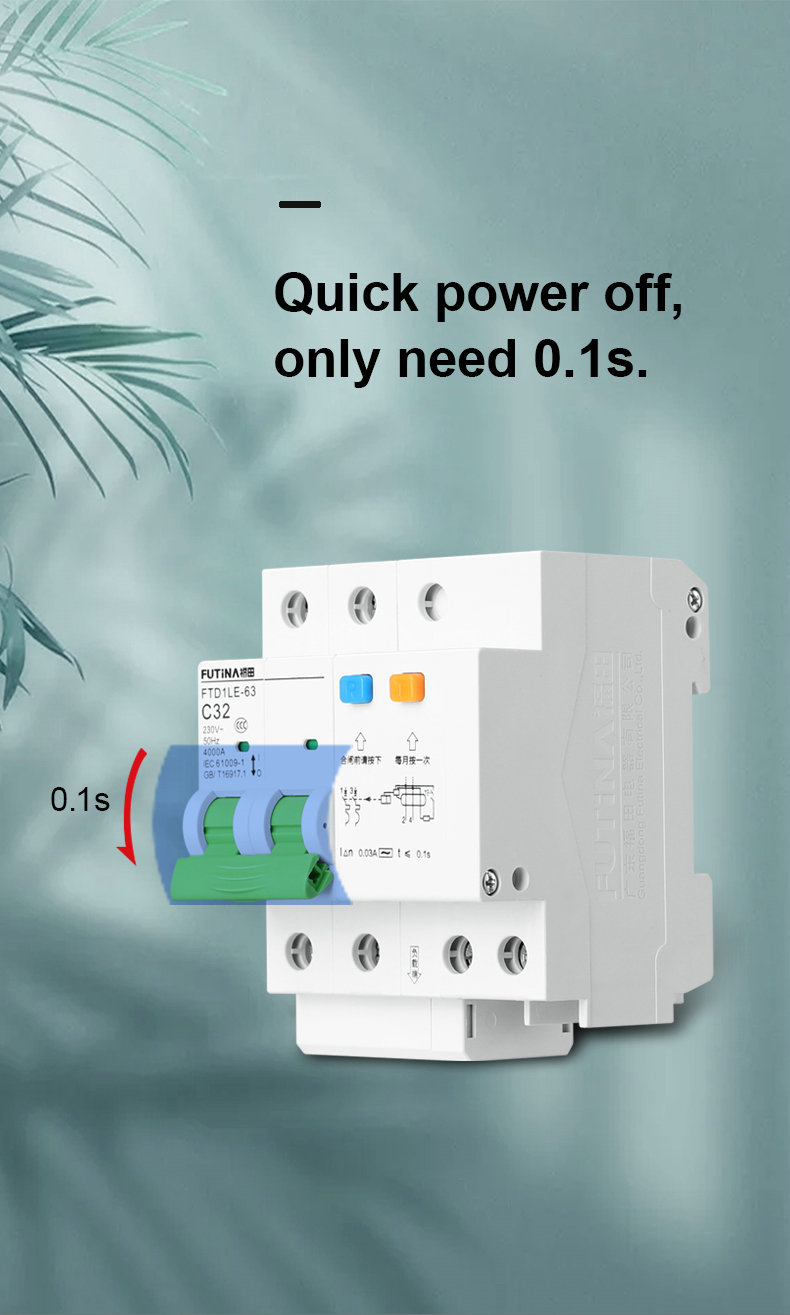

Quickly response
Residual current operated circuit breaker will quickly cut off the faulted power within a very short period of time failure to protect the personal safety and the safety of electrical equipments.
-

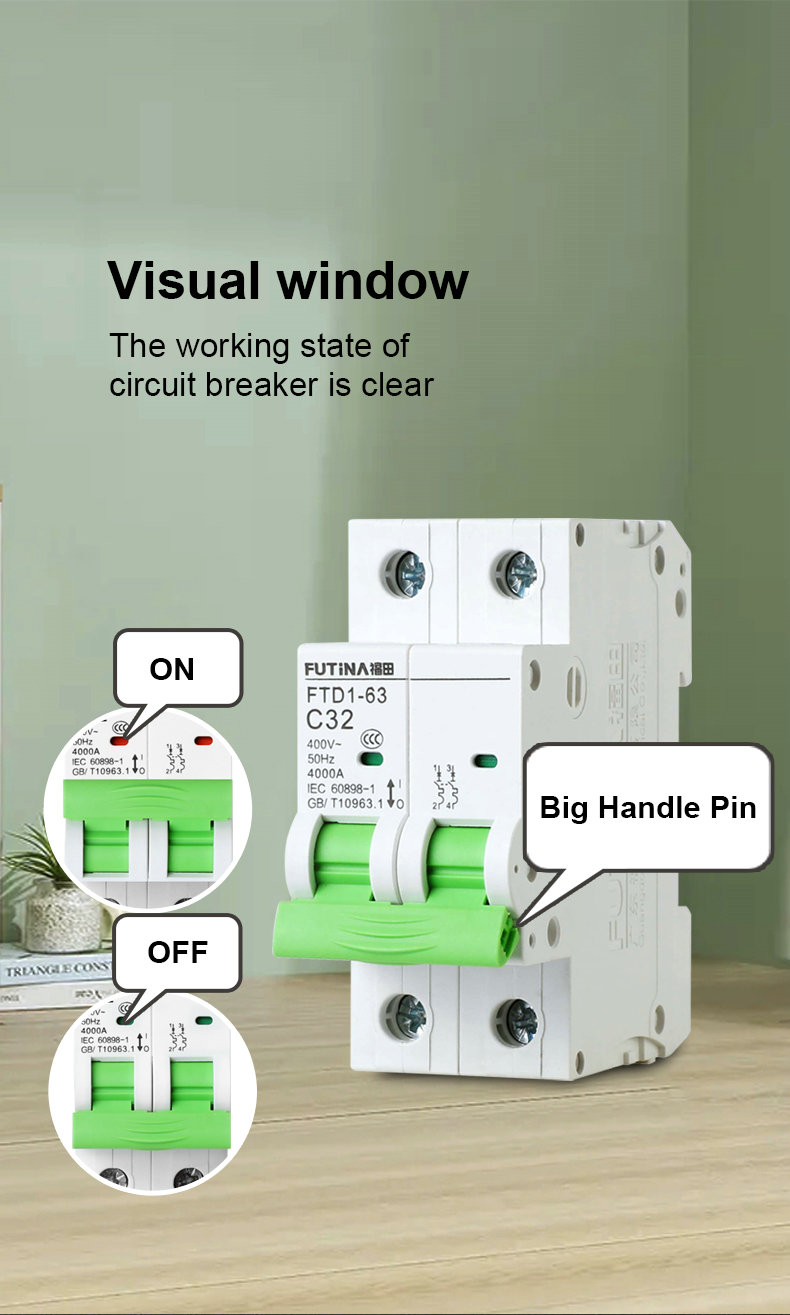

Wide handle design
Reduce pressure on fingers, easy to switch ON and OFF.Push handel in 2/3 range, achieve automatically close avoid the generation of electric sparks.
-
Rapid arc extinguishing system
Magnetic arc extinguishing system, make arc extinguish quickly and effectively while power failure, quickly cut off with strong breaking capacity.
